Overview

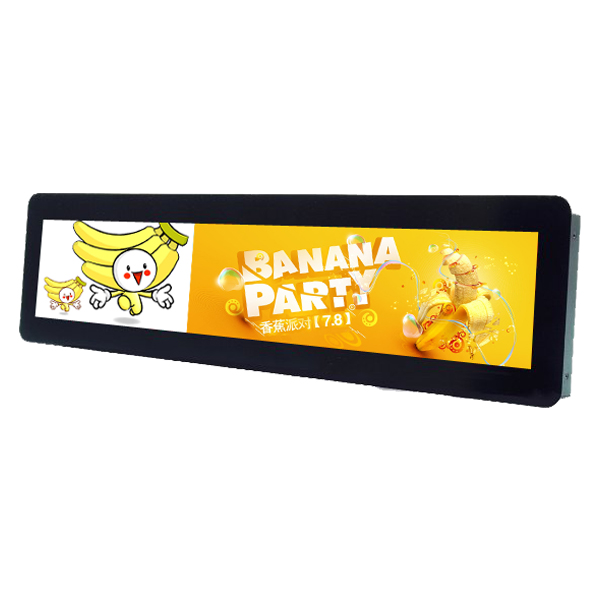

Stretched Displays – Ultra-wide Native Stretched Displays, Versatile & Reliable, Slim & Narrow
TDD native bar type display series - ultra-stretched – designed to meet the demands of the most restricted digital signage spaces. TDD advanced stretched displays are custom built with 16:9 or 4:3(or any other aspect ratio) aspect ratio from the get-go to ensure the best quality and performance. Our range of native stretched LCD panels presents you with a number of innovative ways to grab public attention.
These stretched panels, also known as bar displays / bar type screen, are available in a variety of sizes, configurations, and brightness options making them a perfect versatile solution for your digital signage needs. TDD stretched panels / displays are utilized in retail, advertising, public transportation, quick-service restaurants, information present, advertisements and other applications worldwide.
Specifications
TDD-CD-SD Series – Wall Mount & Adaptable Design
Features:
Superior Visibility: Advanced anti-glare panel treatment (optional), elevated brightness, slim and narrow bezel design
Unrivaled Longevity: Continuous 24/7 operation, custom advanced panels
Various Sizes with Customized Aspect Ratio: 7’’-65’’, 600-2000 nits
Main Functions:
Full HD LED screen, support display models (horizontal/vertical) etc.
Multi-groups of on/off time schedule could be set remotely and control the display through internet

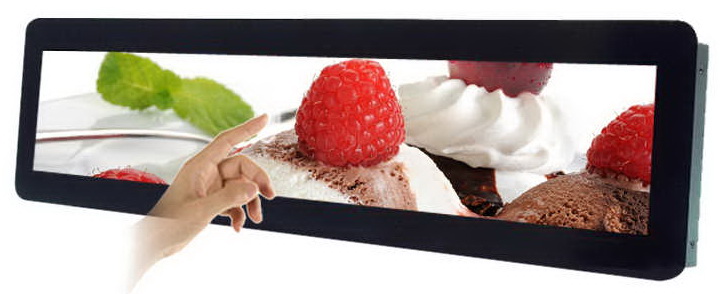

Interactive touch function (optional infrared touch or capacitive touch)
Scrolling texts are available, various display modes for titles (fonts and colors of letters, background colors, the relative attributes of rolling directions in horizontal or vertical could be adjusted)
Support uploading files through WIFI and cable network
Support single screen or dual screens, play same or different video files and audio contents in these two screens
Configuration:
| LCD panel | Name Type | 28''-58'' Stretched Display |
| Model number | TDD-CD-SD-28-58 | |
| Panel size | 28-58 inch | |
| Display Area | Subject to change(up to final size) | |
| LCD Type | TFT-LCD | |
| Resolution | 1920× 304 / 361 / 384 / 405 / 540 / 720 | |
| Display color | 16.7 M | |
| Brightness | Standard: 450 cd/m²(optional for 600 - 2000) | |
| Contrast | 3000 : 1 | |
| View-angle(up/down/left/right) | 89°/89°/89°/89° | |
| Response Time | 8ms | |
| Field Frequency | 60 Hz | |
| OSD Language | Chinese/English | |
| Port | HDMI | 1 |
| DVI | 1 | |
| VGA | 1 | |
| RS232 | 1 | |
| Power | Audio system | Built-in 8 Ω 5 w * 2 speakers |
| Power | AC100V～240V，50/60Hz | |
| The maximum power loss | ≦200W | |
| Standby power loss | ＜1W | |
| Environment | Operating temperature | 0℃~50℃ |
| Storage temperature | -20℃~60℃ | |
| Installation | Frame material | Metal |
| Fuselage size (long x high x thick) | Subject to change(up to final size) | |
| Net weight | Subject to change(up to final size) | |
| Gross weight | Subject to change(up to final size) | |
| Installation type | Wall mounted | |
| Range of application | Indoor | |
| Accessories | Power cable | 1 |
| Manual | 1 |
OS & Software:
Android / Windows / Linux available, all hardware drivers available.
Packing:
Bubble-wrap, Carton, Wood (Plywood) Crate (optional)
