TDD-CD-SM-L

Overview

Smart Mirror – Beautiful, Configurable and Custom-Built
The Magic Mirror with Android Things is a smart mirror that displays the time, weather, and other important information about your day. It is basically a mirror with a screen behind it. That screen can be an Android tablet or a computer monitor. Naturally, a monitor will make for a larger mirror. Also a Magic Mirror is basically a computer screen behind a two-way mirror. When white text is displayed on a black background on the monitor, the text shines through the mirror and appears to be imbedded in the glass. There are several Magic Mirror programs that display time & date, outside temperature, your schedule, and a multitude of other options.

TDD-CD-SM series smart mirror is a compact & one-stop solution from combination of waterproof technology and display technology, to the development of broad temperature range technology and high brightness, and to the light and mirror panel, TDD now offers you Smart Mirror (round & rectangle type from 13.3’’ to 21.5’’), Waterproof TV & Mirror TV (from 19’’ to 27’’), Kitchen TV, Bathroom TV, Outdoor TV and other high end product including custom design and development for smart home, hotel, kitchen, bathroom / bath, towel hanger, toilet, shower, lighting control, environment management and fresh air system, living room, vanity counter, hallway and balcony scene.

Specifications

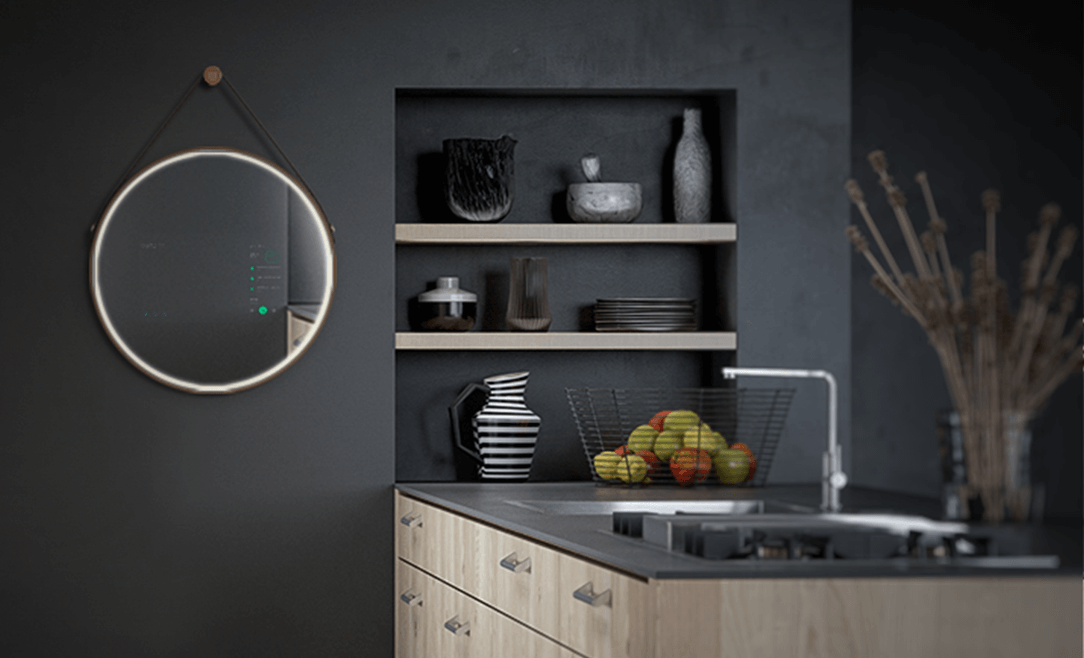

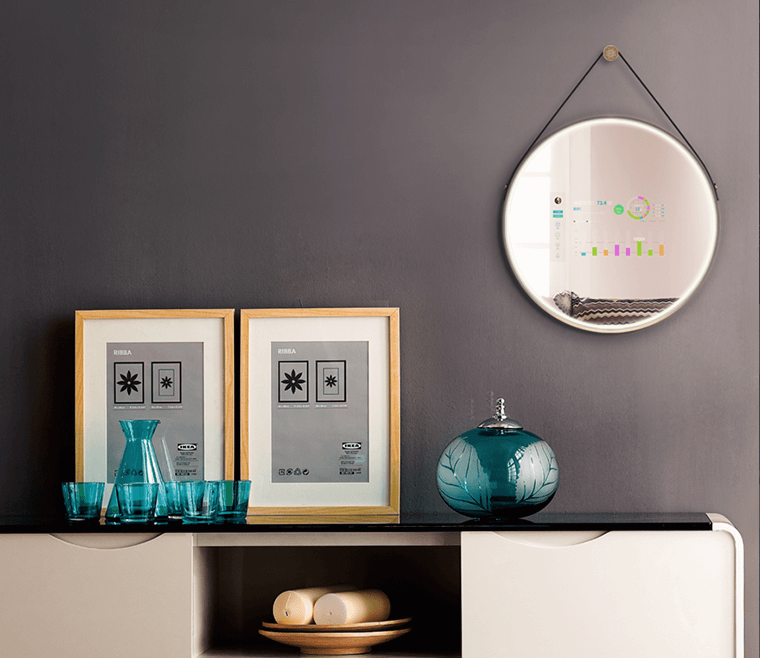

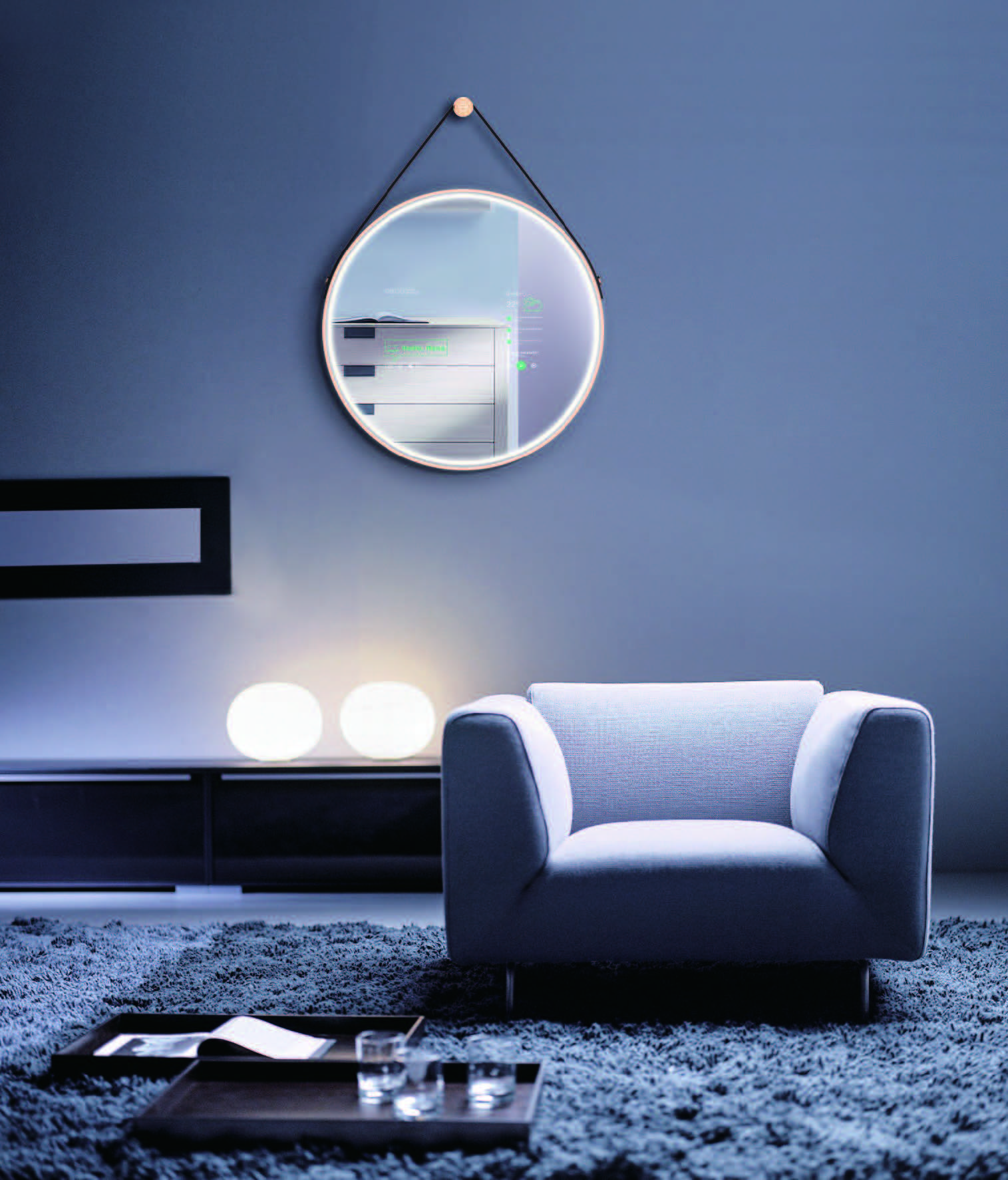

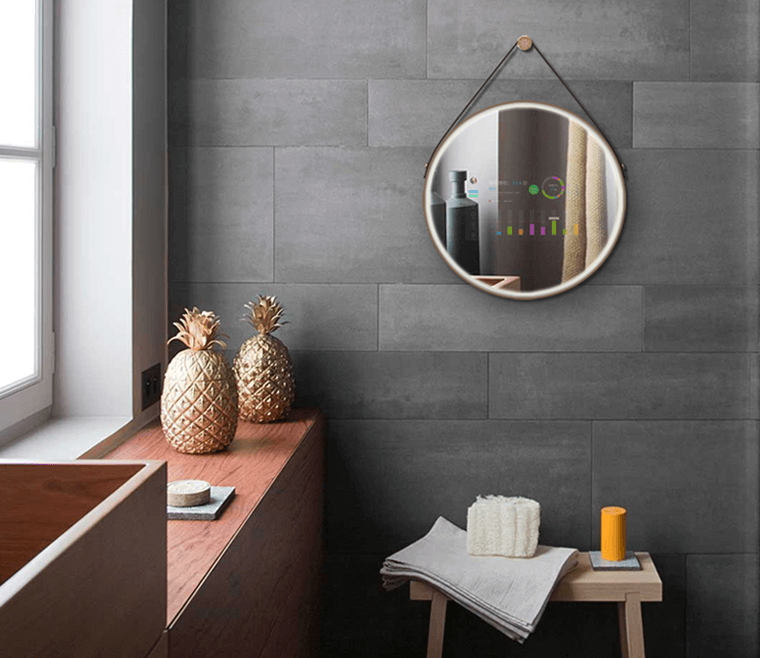

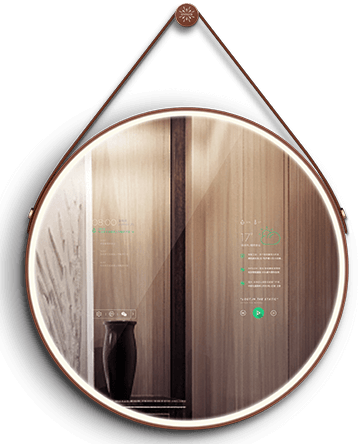

TDD-CD-SM-L Series  Hang with Leather Band, Hang on A Smooth Surface, Wall Mount

Features:

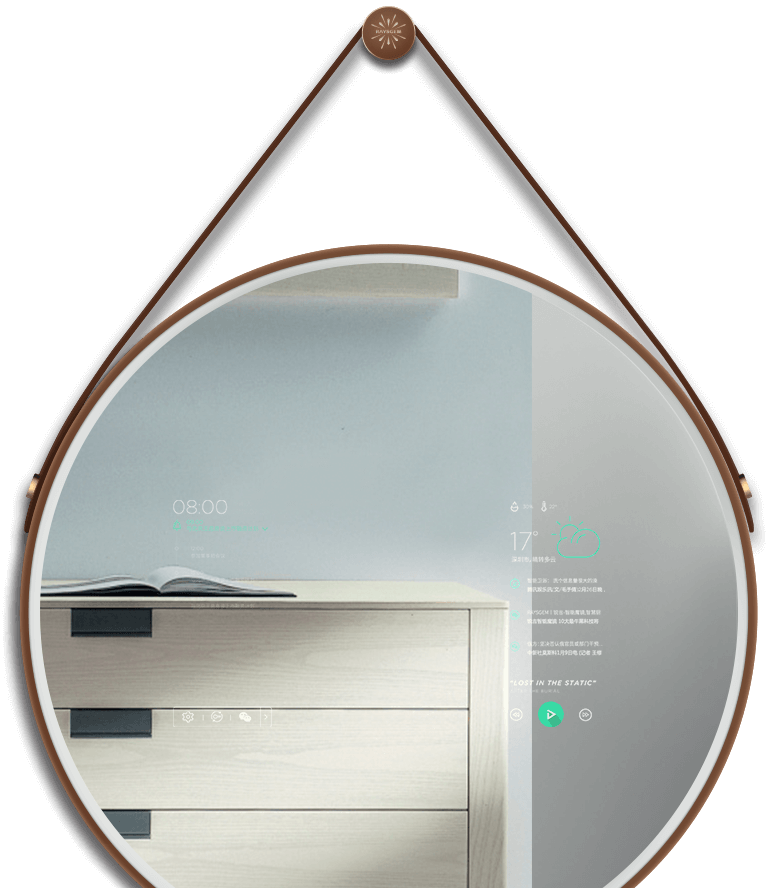

Shape: Round smart mirror, 2nd generation

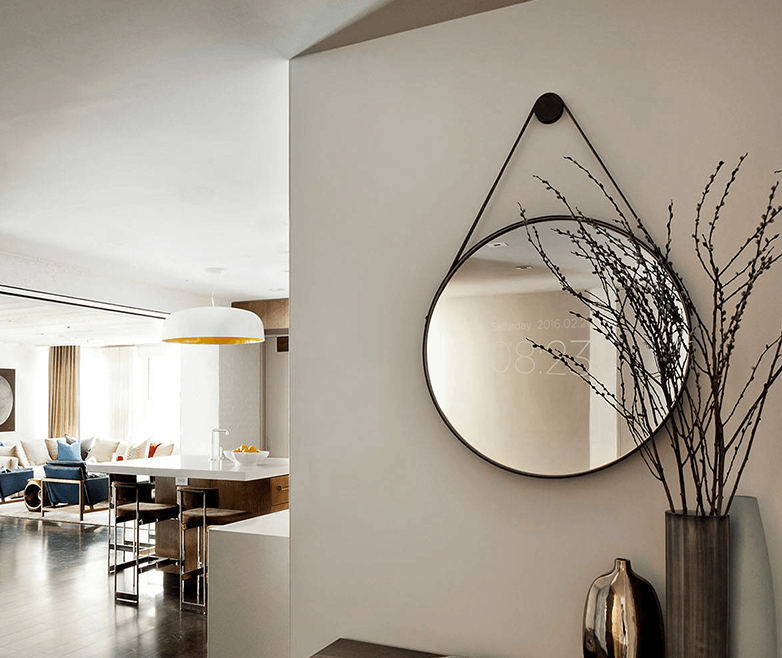

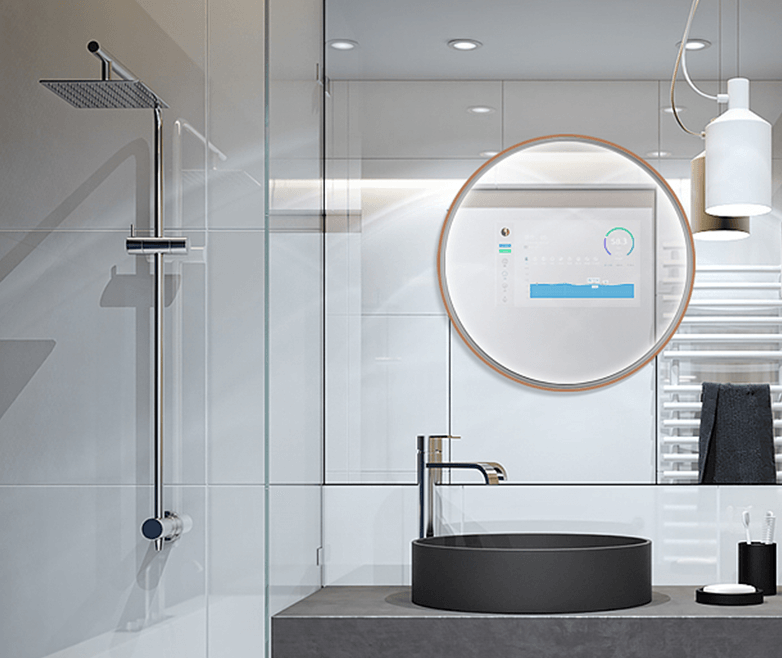

Status: One Mirror Makes Two Differences. When it is off, it is just a regular mirror in your bathroom, can check your daily makeup in front of it. When it wakes up, it becomes a smart interactive control center and your life assistant.
Intelligent & Smart System: Every of our product comes with a smart interactive platform. With touch screen or voice control, your mirror is connected to all your smart appliances at home, you can easily control home lighting, music, air purifier, water heater and etc. Mirror with all potential to be explored is at your command.
Appearance: Amazing on the Outside & Expert Craftsmanship Inside. Aluminum-rim as base material, TDD-CD-SM-L fine-tunes each and every detail with expert craftsmanship, graceful and elegant as ever. Decorative Frame: Walnut Texture & Matt Golden.
Health: Health Management Covered for You. TDD-CD-SM-L supports skin analyzer, weight scale, sleep monitor and other health devices as extension. By gathering and documenting user health data every day, it gives personal health service automatically.
Intelligent Linkage: Smart Control & Hands Free. Voice control integrated, it gives full access for you to control music/video contents, home appliances by voice. Also by touch or voice, you can control all smart home appliances on it, home lighting, music, air purifier and heater all in one
touch / voice command. News, weather, traffic and calendar, everything in plain view on it for you. It also sends daily reminders for your outdoor activities.

Configuration:
CPU              Rockchip3288
Frequency          Cortex A17 1.8GHz
GPU              Mali-T764
RAM              2GB
ROM:              8GB (64G Optional)
WIFI              2.4G/5G Double frequency 802.11 a/b/g/n
Bluetooth          Blue tooth 4.0
OS                  Android 5.1.x
Waterproof capacitive  YES (10 points)
touch screen
Speaker              2x2W
Power button (touch)  YES
Motion sensor      YES (20~80cm)
Zigbee module     Optional

Image processor    OPENGL ES1.1/2.0/3.0,OPEN VG1.1
OPENCL, Directx11
2D/3D
4K, H.265 decoder

Display:
Display size          13.3
Display type          IPS
Display ratio          16:9
Resolution          1920xRGBx1080
Brightness          350 cd/m2(Original LED screen)
Contrast Ratio      1000:1
Viewing angle      178°(H)X178°(V)
Display color          16.7M
Response time      5ms
Working life          ≥20000 Hours

Interfaces:
DC In                1
OTG                 1
USB                 1

Power Consumption:
Power input           DC 12V 3A
Consumption           ≤36W
Standby Consumption   ≤0.5W

General Dimensions / Material / Process:
General Size           Φ500mm
Thickness           36mm
Mirror panel           Diamond level coated glass
Material               Aluminum-alloy rim, plastic back shell
IP level               IP65

Working / Temperature & Humidity:
Working               0-50℃/20-90%RH
Storage               -20-60℃/5-90%RH

OS & Software:
Android available, all hardware drivers available.

Packing:
Bubble-wrap, Carton, Wood (Plywood) Crate

Applications

Custom Displays, Wall Mount / Freestanding / Floor Standing Smart Mirror Displays, Smart Mirrors, Android Smart Mirrors, Stretched Displays, Transparent LCD Displays / Box, LCD Transparent Touch Screen, 3D Holographic Displays / Boxes, Magic Mirrors, Smart Mirror Displays, Smart Bathroom Mirror, ZigBee Smart Home Automation, Touchscreen Android with Magic Mirror, Smart Mirror with 13.3’’, 15.6’’, 21.5’’ and 23.6’’ LED Screen, Mirror Displays, Magic Mirror Displays, Waterproof TV, Mirror TV, Kitchen TV, Outdoor TV, Mirror AD Players, Smart Cabinet Doors, Hotel Bathroom TV, Mirror Built-in TV, Stretched LCD, Bar LCD Monitors, Transparent LCD Displays, Transparent LCD Touch Screen, 3D Holographic Display Box, China Custom Jewelry 3D Displays, 3D Integrated Holographic System for Advertising, Mirror TV Screens, Mirror Glass, Mirror Advertising, Professional Mirror Displays, Transparent LCD / LED Display Boxes, Advertising Kiosks, China Kiosks Manufacturers
