Overview
Smart Mirror – Beautiful, Configurable and Custom-Built
The Magic Mirror with Android Things is a smart mirror that displays the time, weather, and other important information about your day. It is basically a mirror with a screen behind it. That screen can be an Android tablet or a computer monitor. Naturally, a monitor will make for a larger mirror. Also a Magic Mirror is basically a computer screen behind a two-way mirror. When white text is displayed on a black background on the monitor, the text shines through the mirror and appears to be imbedded in the glass. There are several Magic Mirror programs that display time & date, outside temperature, your schedule, and a multitude of other options.
TDD-CD-SM series smart mirror is a compact & one-stop solution from combination of waterproof technology and display technology, to the development of broad temperature range technology and high brightness, and to the light and mirror panel, TDD now offers you Smart Mirror (round & rectangle type from 13.3’’ to 21.5’’), Waterproof TV & Mirror TV (from 19’’ to 27’’), Kitchen TV, Bathroom TV, Outdoor TV and other high end product including custom design and development for smart home, hotel, kitchen, bathroom / bath, towel hanger, toilet, shower, lighting control, environment management and fresh air system applications.
Specifications

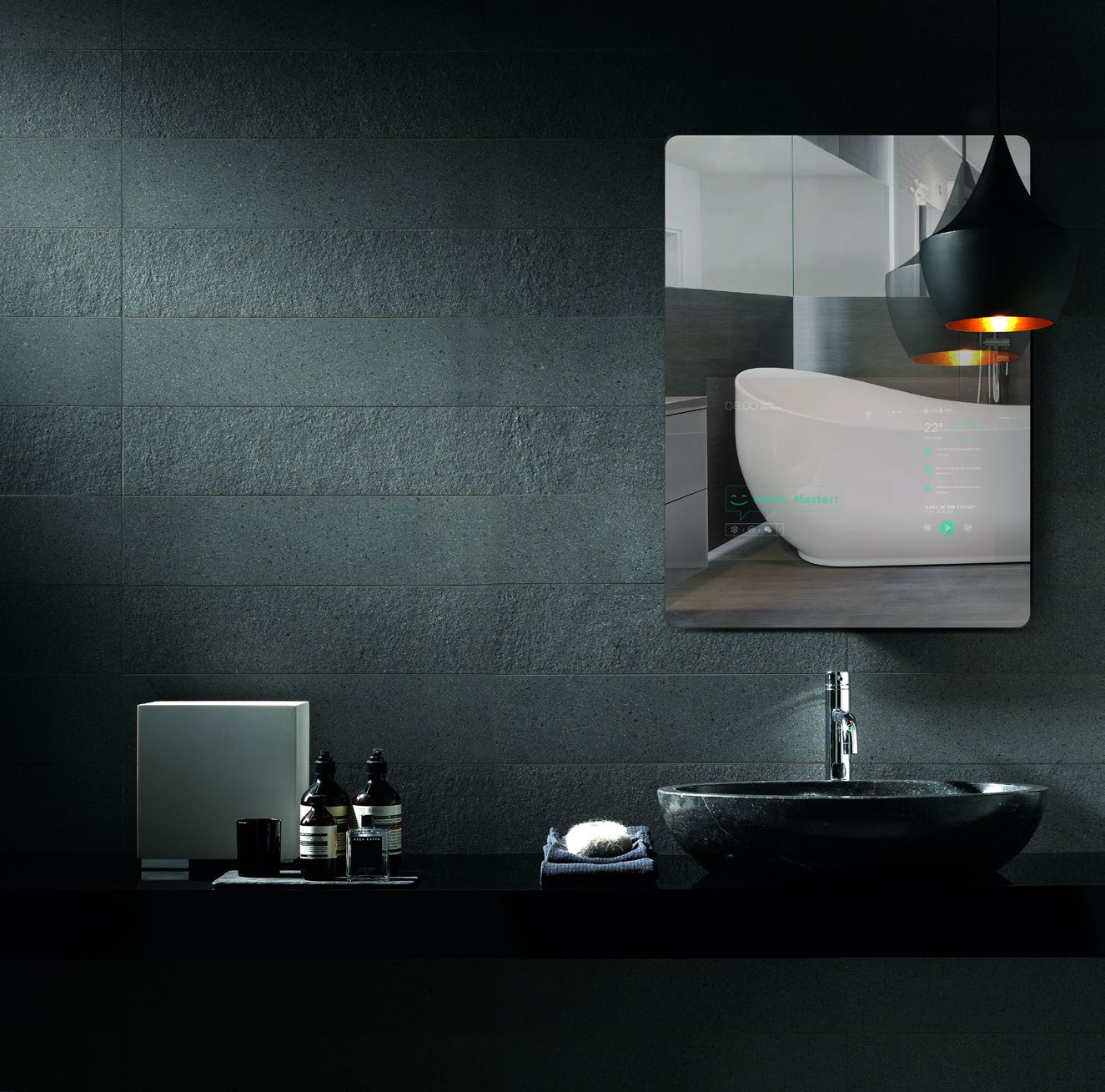

TDD-CD-SM-M Series – Wall Mount
Features:

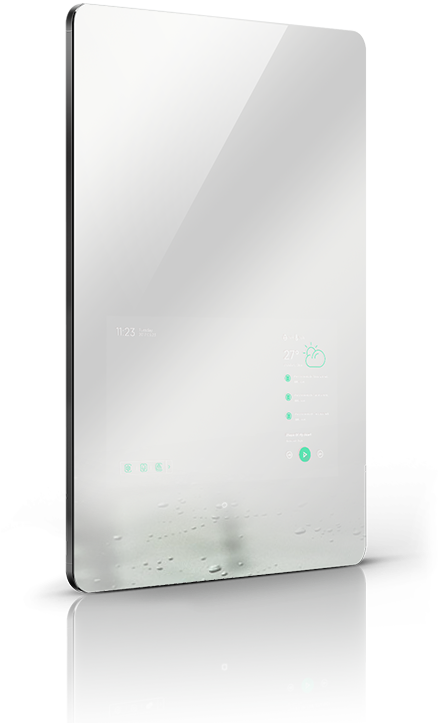

Magic: Secret in a smart mirror, touch and go
Appearance: Stunning Design & Excellent Performance. Whole new design with fine craftsmanship, all at your convenience
Health: Health Management Covered for You. TDD-CD-SM-M supports skin analyzer, weight scale, sleep monitor and other health devices as extension. By gathering and documenting user health data every day, it gives personal health service automatically after big data analysis.
Craft: One Touch & Smooth as Silk. 21.5” full HD display with 10 capacitive touch screen. One touch as smooth as silk, just to present you a perfect interactive experience. IP65: Waterproof & Temperature Control. MPS display.

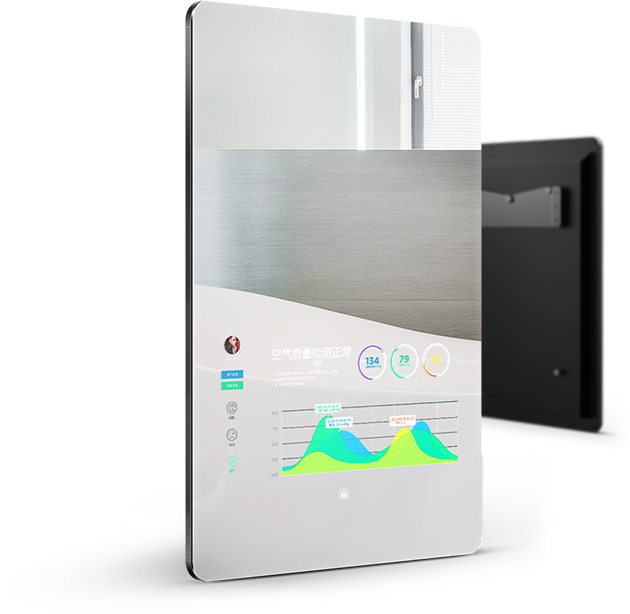

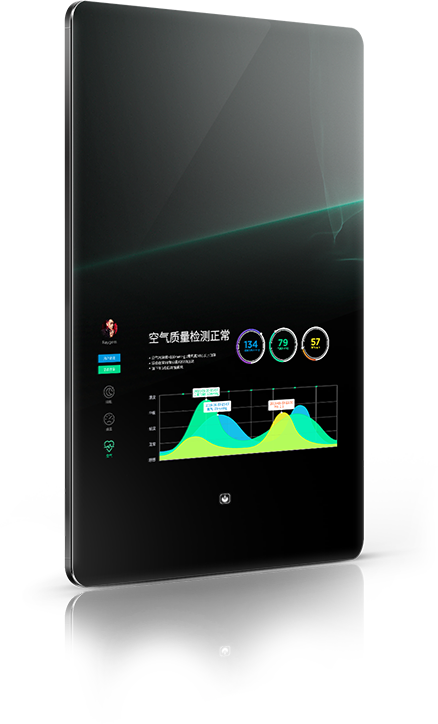

Fashion: Simple & Slick UI. Simple design with instant interaction, comprehensive app extension and smart control over external devices, it also
provides weather, news and health updates for daily use.
Technology: Core Technology, always aiming for more. We believe in design and craftsmanship, with our professional R & D team, now there’s this amazing mirror product with core technologies.
Configuration:
CPU Rockchip3288
Frequency Cortex A17 1.8GHz
GPU Mali-T764
RAM 2GB
ROM: 8GB (64G Optional)
LAN: YES
WIFI 2.4G/5G Double frequency 802.11 a/b/g/n
Bluetooth Blue tooth 4.0
OS Android 5.1.x
Waterproof capacitive YES (10 points)
touch screen
Speaker 2x2W
Power button (touch) YES
Motion sensor YES (20~80cm)
Zigbee Optional
Display:
Display size 21.5(optional for 13.3’’, 15’’ and else sizes)
Display type IPS
Display ratio 16:9
Resolution 1920xRGBx1080
Brightness 1000 cd/m2(Original LED screen)
Contrast Ratio 4000:1
Viewing angle 178°(H)X178°(V)
Display color 16.7M
Reponse time 5ms
Working life ≥25000 Hours
Interfaces:
USB 1
USB (OTG) 1
Audio swicth Yes
RCA (Audio out) 2 (Red & white)
Power Consumption:
Power input AC100-240V 2AMax 50/60Hz
Consumption ≤45W
Standby Consumption ≤1W

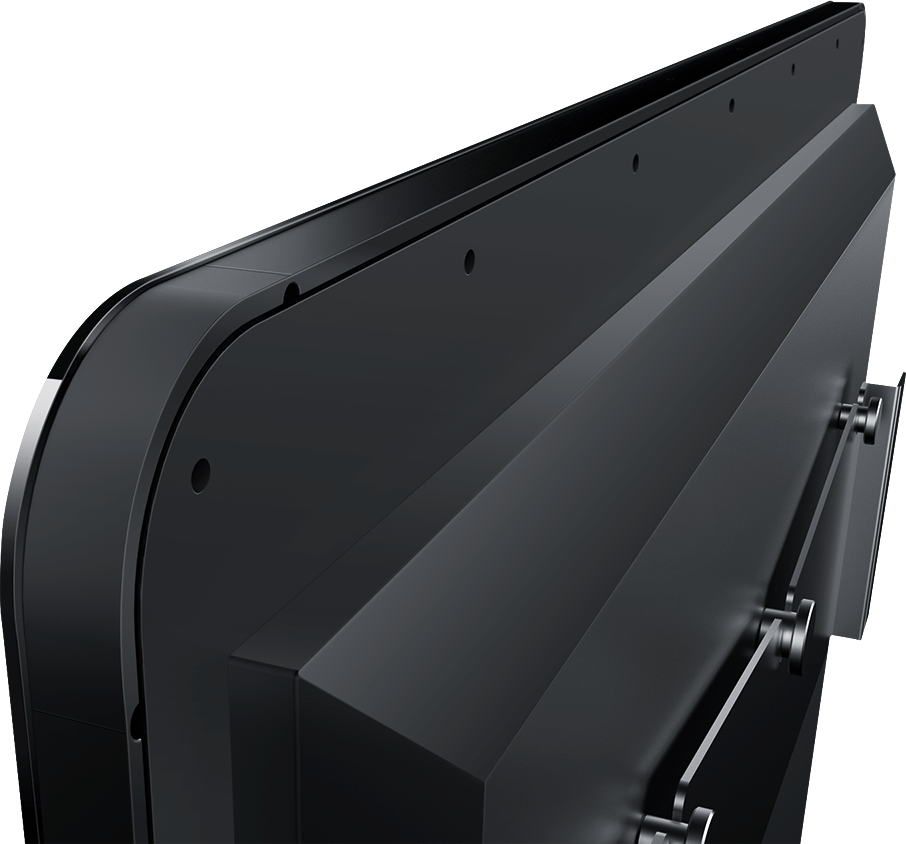

General Dimensions, Material & Process:
General Size 800X600mm
Thickness 40mm
Mirror panel Coated Silver Mirror

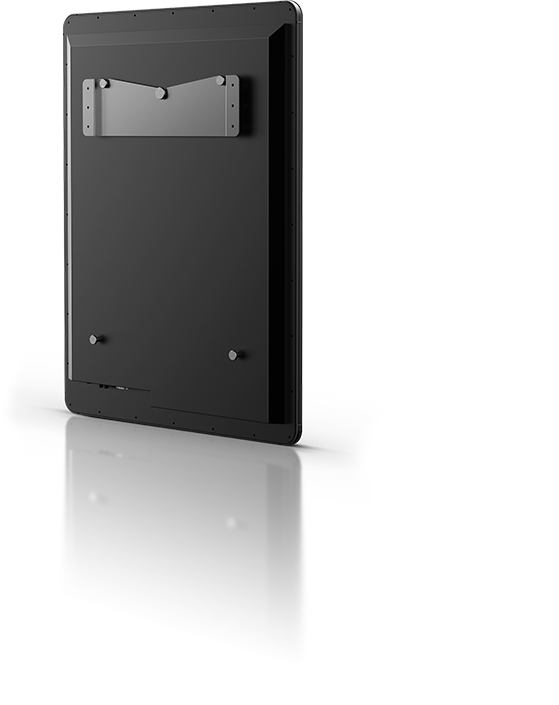

Material Stainless steel bracket, metal casing, plastic parts and etc..
IP level IP65
OS & Software:
Android available, all hardware drivers available.

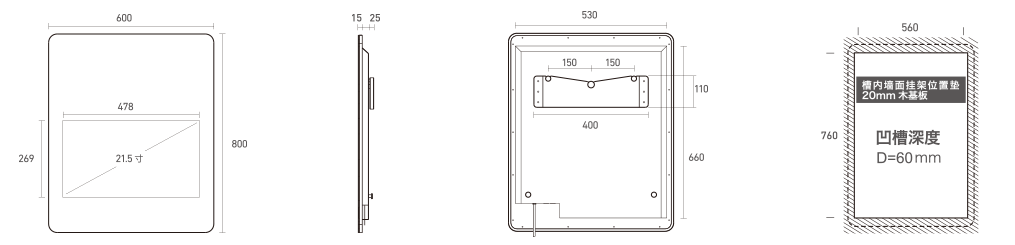

Detailed Dimensions:
Packing:
Bubble-wrap, Carton, Wood (Plywood) Crate
