Overview
Smart Mirror – Beautiful, Configurable and Custom-Built
The Magic Mirror with Android Things is a smart mirror that displays the time, weather, and other important information about your day. It is basically a mirror with a screen behind it. That screen can be an Android tablet or a computer monitor. Naturally, a monitor will make for a larger mirror. Also a Magic Mirror is basically a computer screen behind a two-way mirror. When white text is displayed on a black background on the monitor, the text shines through the mirror and appears to be imbedded in the glass. There are several Magic Mirror programs that display time & date, outside temperature, your schedule, and a multitude of other options.
TDD-CD-SM series smart mirror is a compact & one-stop solution from combination of waterproof technology and display technology, to the development of broad temperature range technology and high brightness, and to the light and mirror panel, TDD now offers you Smart Mirror (round & rectangle type from 13.3’’ to 21.5’’), Waterproof TV & Mirror TV (from 19’’ to 27’’), Kitchen TV, Bathroom TV, Outdoor TV and other high end product including custom design and development for smart home, hotel, kitchen, bathroom / bath, towel hanger, toilet, shower, lighting control, environment management and fresh air system, living room, vanity counter, hallway and balcony scene.
Specifications

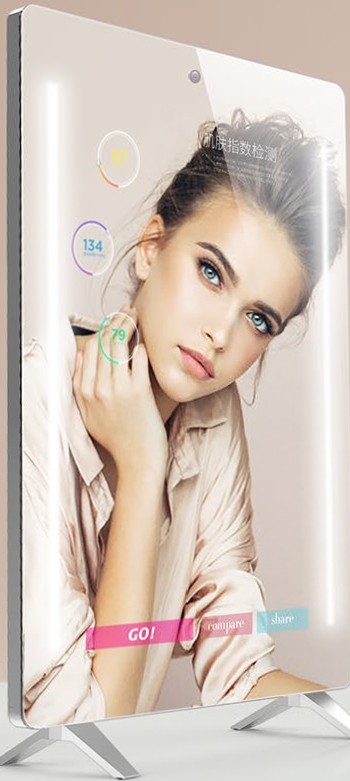

TDD-CD-SM-S Series – Makeup Mirror, With Countertop Stand
Features:
Front Camera 12MP
HD Mirror Display
Virtual Makeup Technology
Smart Skin-protect Devices
Appearance & Structure:
The bracket can be placed on the counter
Bracket removable, embedded installation
Configuration:
CPU 2-core A72 2.0GHz + 4-core A53 1.5GHz
GPU Mali-T864
RAM 4GB (Optional)
ROM: 16GB (Optional)
WIFI Yes
Bluetooth Yes
OS Android 7.1.x
Waterproof capacitive YES (10 points)
touch screen
Speaker 2x2W
Power button (touch) YES
Motion sensor YES (20~80cm)
Display:
Display size 21.5
Display type IPS
Display ratio 16:9
Resolution 1920xRGBx1080
Brightness 750 cd/m2(Original LED screen)
Contrast Ratio 3000:1
Viewing angle 178°(H)X178°(V)
Interfaces & Power:
USB USB2.0*2
Power input AC100V-240V～, 2A max, 50/60Hz
Consumption ≤130W
Standby Consumption ≤1W
General Dimensions / Material / Process:
General Size 400x600mm
Thickness 44mm
Mirror panel Diamond level coated glass
Material Aluminum-alloy frame, plastic back shell
Executive standard GB4943.1-2011, GB9254-2008, GB17625.1-2012

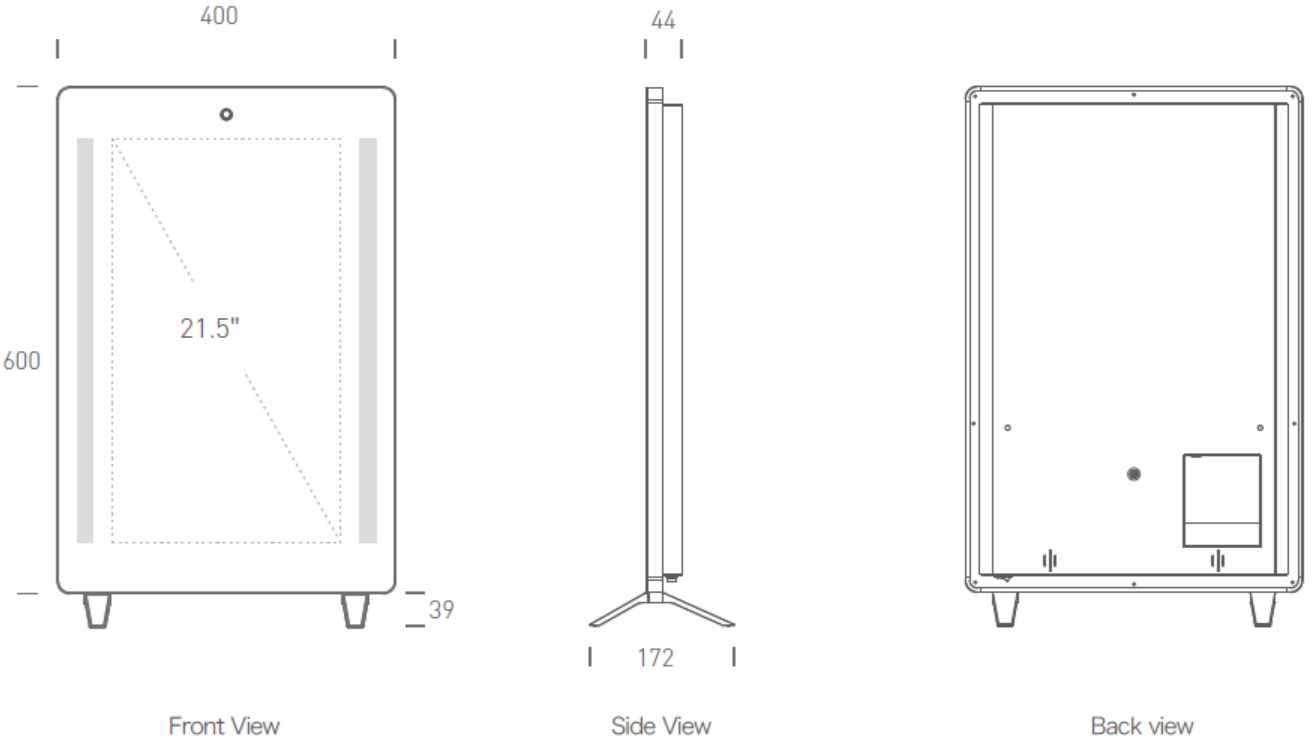

Detailed Dimensions:
Working / Temperature & Humidity:
Working 0-45℃/20-90%RH
Storage -20-60℃/5-90%RH
OS & Software:
Android available, all hardware drivers available.
Packing:
Bubble-wrap, Carton, Wood (Plywood) Crate
Applications
Custom Displays, Wall Mount / Freestanding / Floor Standing Smart Mirror Displays, Smart Mirrors, Android Smart Mirrors, Stretched Displays, Transparent LCD Displays / Box, LCD Transparent Touch Screen, 3D Holographic Displays / Boxes, Magic Mirrors, Smart Mirror Displays, Smart Bathroom Mirror, ZigBee Smart Home Automation, Touchscreen Android with Magic Mirror, Smart Mirror with 13.3’’, 15.6’’, 21.5’’ and 23.6’’ LED Screen, Mirror Displays, Magic Mirror Displays, Waterproof TV, Mirror TV, Kitchen TV, Outdoor TV, Mirror AD Players, Smart Cabinet Doors, Hotel Bathroom TV, Mirror Built-in TV, Stretched LCD, Bar LCD Monitors, Transparent LCD Displays, Transparent LCD Touch Screen, 3D Holographic Display Box, China Custom Jewelry 3D Displays, 3D Integrated Holographic System for Advertising, Mirror TV Screens, Mirror Glass, Mirror Advertising, Professional Mirror Displays, Transparent LCD / LED Display Boxes, Advertising Kiosks, China Kiosks Manufacturers
