Overview

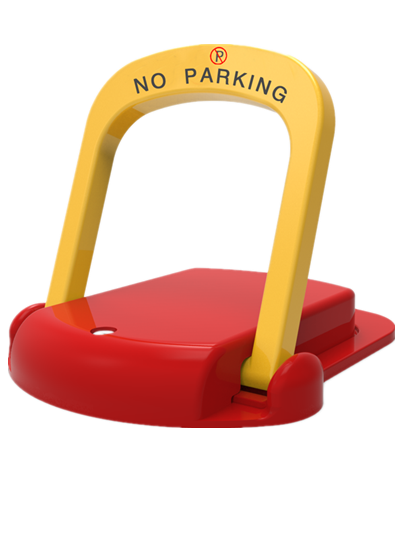

APP / Bluetooth Control Parking Lock
TDD-PE-PLB is APP operated LoRa parking lock wireless parking space blocker with following functions:

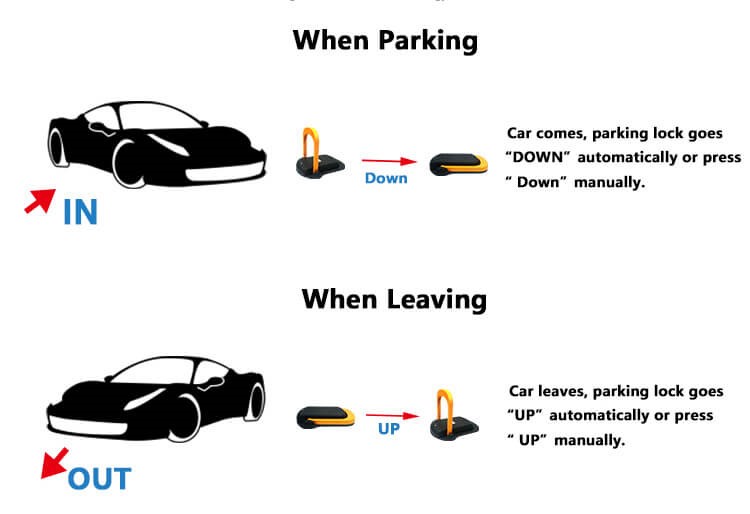

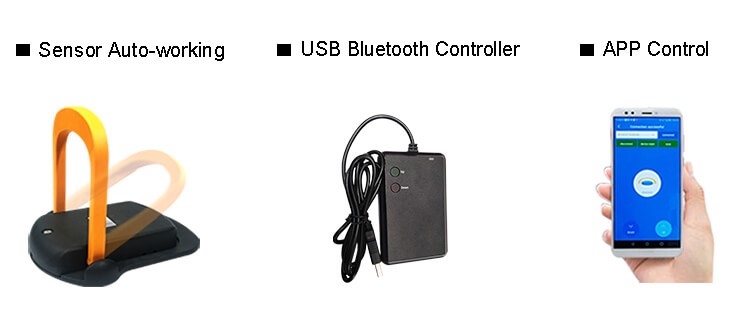

1: Sensor auto-working: when car comes, the parking lock goes DOWN automatically. When car leaves, it will go UP automatically.
2: APP control. Use your phone to control parking lock go UP/DOWN.
3: Download the App: Android | iOS.
4: Manually button. Press UP/DOWN to control.
Specifications
Features:
Occupancy detection: Build in vehicle detector, real time monitor occupancy status. Backend software monitor and management simultaneously.
Low power consumption pure battery power: Unique low power consumption circuit design, purely battery power. Theoretically service life more than 5 years under normal use (family use, 4 times / day), no need for power grid, easy installation and save construction cost.
Abnormal self diagnosis: Self diagnosis of battery capacity, up/down process, arm in position/over position. Buzzer alarm in abnormal status, and interface prompt in backend software.
Remote control: Multi remote control ways, like Bluetooth, mobile App and backend control.
Anti-collision: 180° degree front and back anti-collision. Go back if blocked when ascending and go down along hit direction.
Waterproof: Unique seal design, working properly even sinking in water.
Anti-crush: 360° degree direction anti crush, weight resistant up to 3 tons from different direction.
Dust-proof: High degree seal design for completely dust proof.
Protect from occupancy: Buzzer alarm and backend alarm if unauthorized park or vandalism.
Anti-theft: Bolts are installed inside the device. High strength housing material. Without keys, it cannot open cover to dismantle key.
Suitable for different parking lots. (If LoRa communication needed, pls specify.)
Introduction:
Technical Parameter:
| Motor working voltage | 3V |
| Battery | 3.6V-38Ah battery |
| Battery life |
3 years at the working frequency of 10 times per day. 5 years at the working frequency of 4 times per day. |
| Service life | ＞500,000times |
| Working power | 3.6mW |
| Standard by current | 10uA |
| Communication | Bluetooth |
| Lifting speed | 3-5S |
| Lifting height | 355mm |
| Descending height | 66mm |
| Material | ABS G30, thickness 8mm |
| Control method | APP control or Bluetooth activated sensor |
| Ingress protection | IP67 |
| Working temperature | -20℃~+60℃ |
| Dimension | 380(L)*440(W)*66(H)mm |
| Packaging | 400*470*12.5mm |
| Weight | 5KGS |
