Overview
Barrier Gates / Parking Barriers

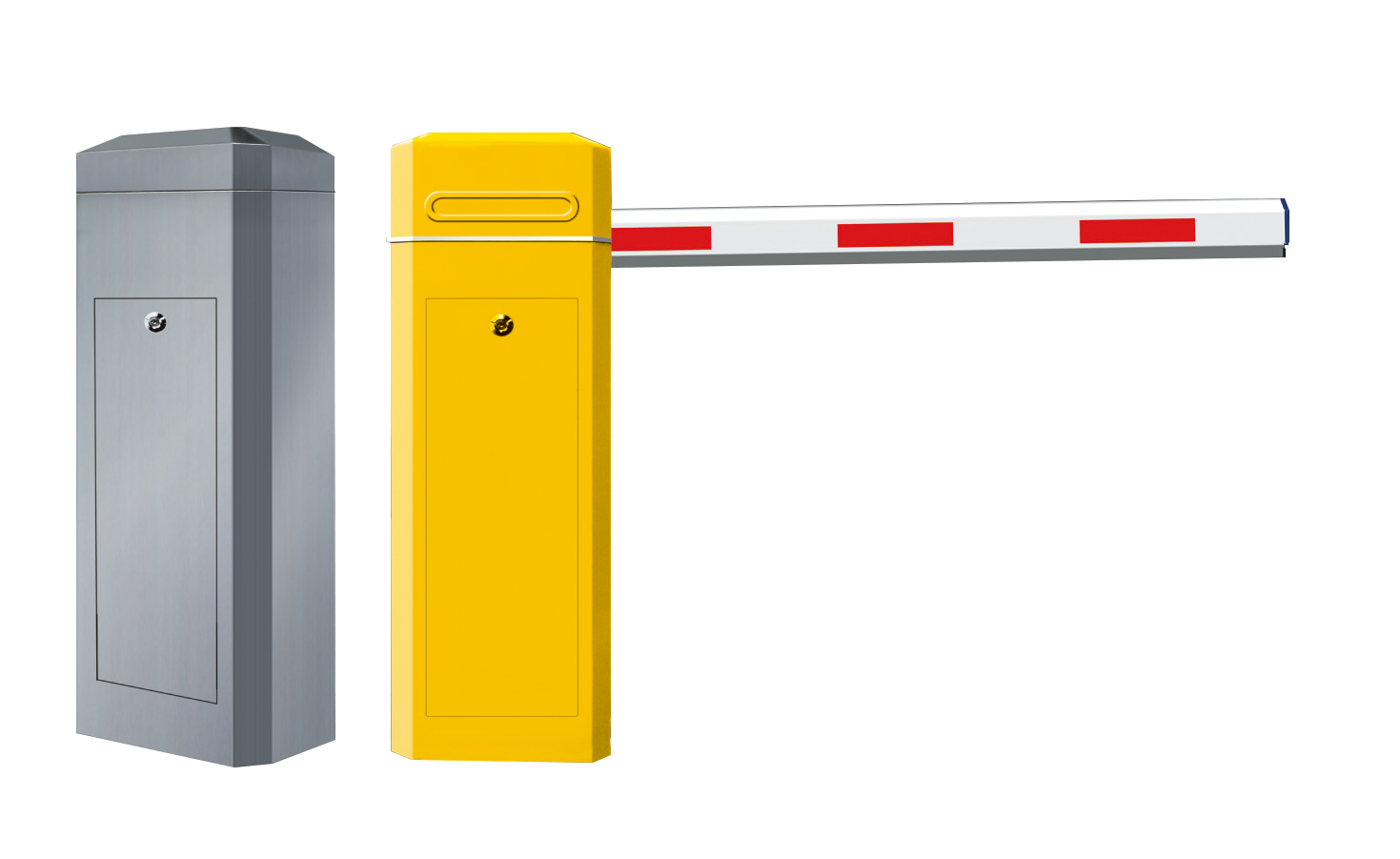

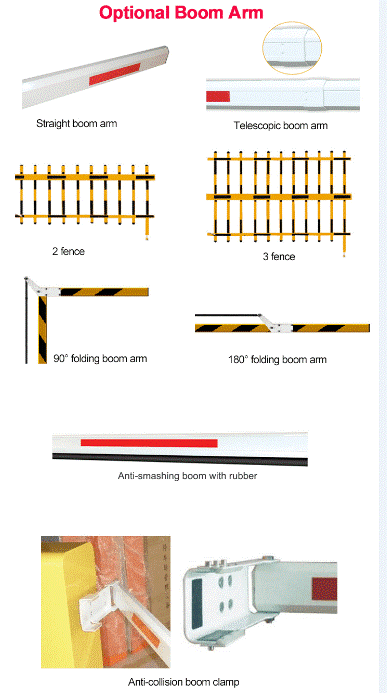

TDD-PE-PB series boom barrier gate is an automatic rising arm to control vehicle access. It can be controlled by remote controller, or working with control device or system. Boom barrier gate, in types of boom, there are straight boom, 90 or 180 degree boom (used in basement floor), fence boom (2 fence or 3 fence), telescopic boom for easy shipping. In types of speed, there are normal speed (6s) medium speed (3s, 1.5s), and high speed (0.9s, 0.6s).
Specifications
Features:
Unique quick clutch device in the gear box, it is easy to clutch when power is off, then the boom can be control manually for up and down.
Strong machine case and anti-collision. The housing will not damaged even the boom is hit.
Buttons OPEN CLOSE and Stop to control barrier gate
Variety of interface. It can connect to photocell sensor, loop detector and parking management system.
Very simple wiring.
The machine has a damping function, and the brake lever will not cause rapid bouncing and rapid drop due to clutch.
Wireless remote control function (using 315MHZ/433MHZ remote controller).
Adopt sine mechanism design and choose maintenance-free bearings to ensure the least parts wearing.
Anti-bumping: during the process of falling down (the angle between the arm and horizontal lane is more than 15 degree), if there is vehicle entering the detection area (working with vehicle detector), the arm will go up automatically to avoid car hit.
Multiple limit protection function.
Technical Parameter:
| Voltage | 220V/110V, ±10% |
| Power | 120W |
| Arm Gate Material | Aluminum Alloy |
| Housing Material | Galvanized Plate |
| Remote control distance | 30 meters |
| Rail Lifting Time | 0.6S~6S (optional) |
| Working Temperature | -20℃ to 45℃ |
| Life time | ≥5,000,000 times |
| Warranty | 1 Year |
