Overview

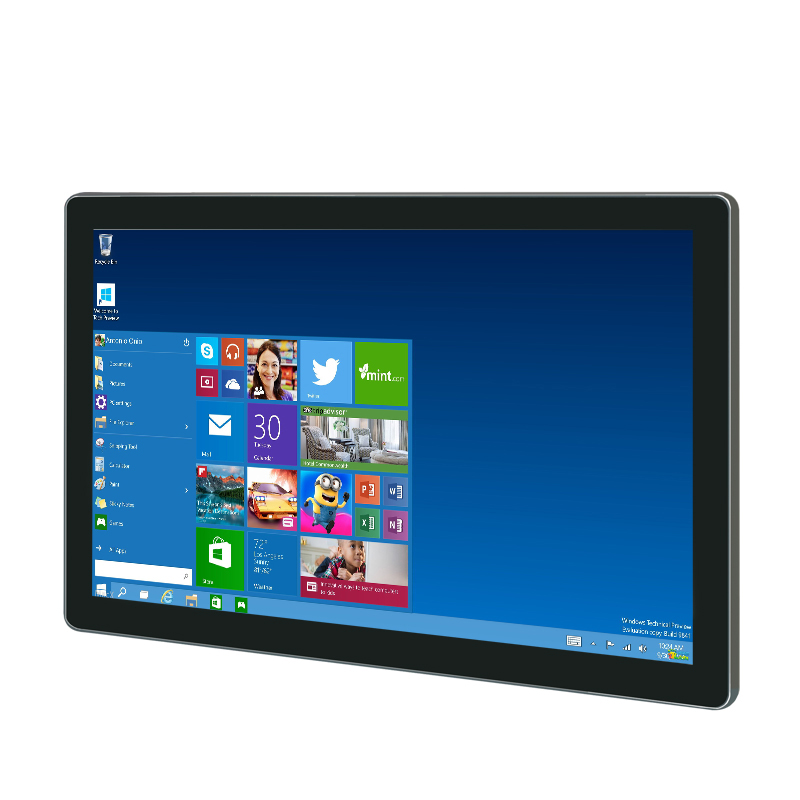

Wall Mount Digital Signage Display- Slim, Optional Card Reader & Split Screen
TDD offers a wide range of floor standing / standalone, wall mount, interactive PCAP / Capacitive / Infrared touch, outdoor digital signage displays with digital poser, standard, super slim, sleek and double-sided for indoor and outdoor applications. Including high-traffic areas which the face of our public spaces and the possibilities for digital signage are everywhere, and used for informational messaging, advertising, entertainment or architectural ambiance, these digital signage displays can transform the experiences of shopping, working and socializing.

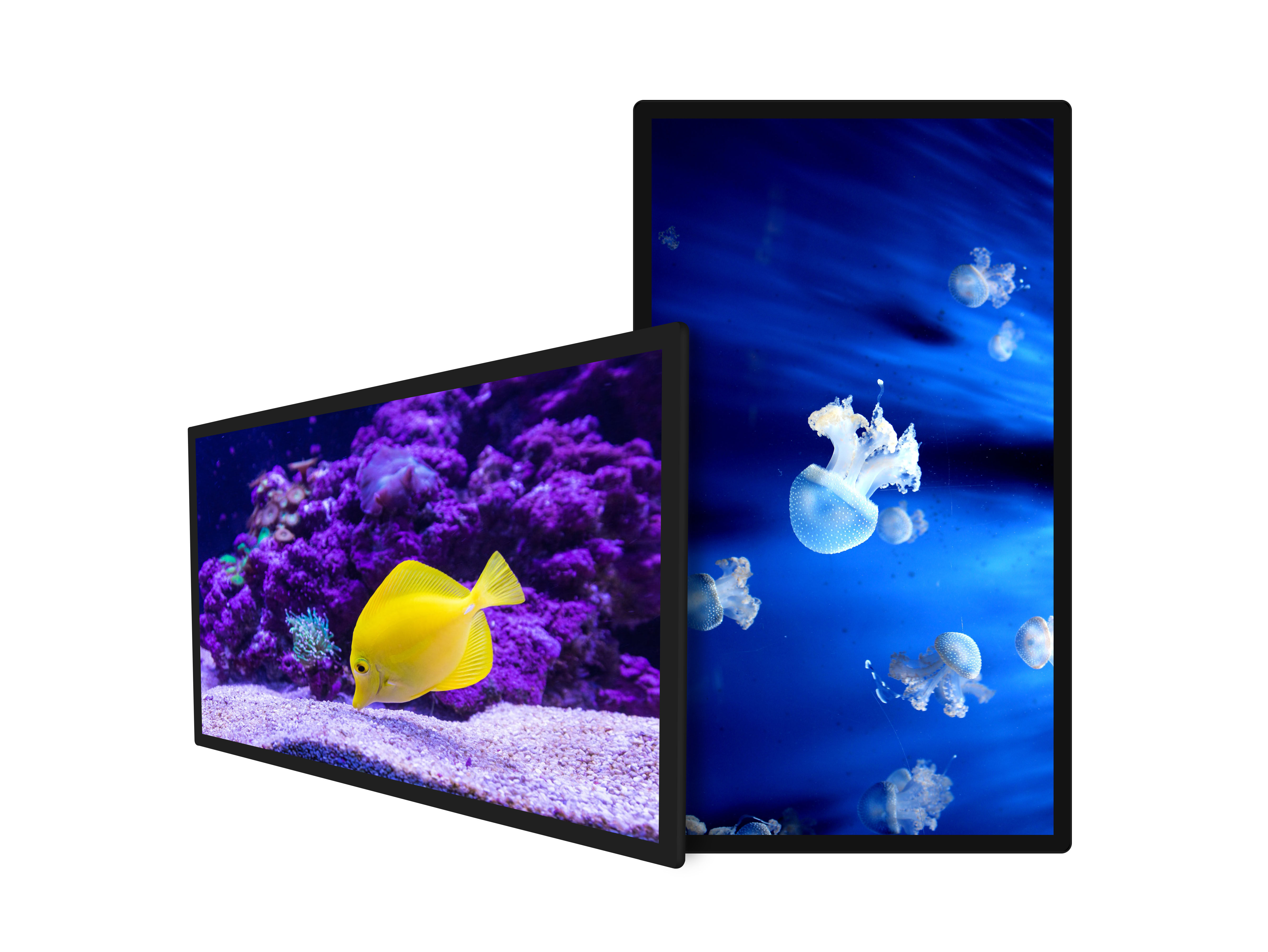

TDD-DS-W is wall mount type and has a variety of sizes screens and is becoming very popular for digital signage advertising and media with its slim, modern and versatile design and easy to use feature. The TDD-DS-W is designed with hinged or back access, providing self-service options to all your customers. Many options (see the following for all options)., such as small size & fan less embedded PCs, different large sized TFT-LCD, handset, card reader, brochure holder, barcode scanner, and printer etc. are available, which make sure our big screen touch solutions incredibly work well in shopping malls, exhibition centers, digital advertising, theme parks, boutique shops, educational markets, sports arenas, and other multimedia applications.
Specifications
Features:
Rugged Steel Enclosure (Baked‐On, Powder‐Coat Paint, Your choice of colors) designed for wall mount
Customization: Custom logo, enclosure color & design and interfaces
Tempered Glass Panel (Optional): Sturdy, explosion proof, high transparency, scratch prevention, heat resistant & cold resistant glass
HD 4K Display (Optional): The picture quality is vivid, pure color, bringing amazing vivid quality
Intelligent Split Screen: multi-faceted display, multi-tasking in one machine, video picture information is correct
24 Hour Loop: Automatically identify the content for continuous playback, long working life, low power consumption, energy saving and environmental protection
Ultra Wide Viewing Angle: 178° full view visual feast, the picture is not deformed, the color is not distorted
Functions:

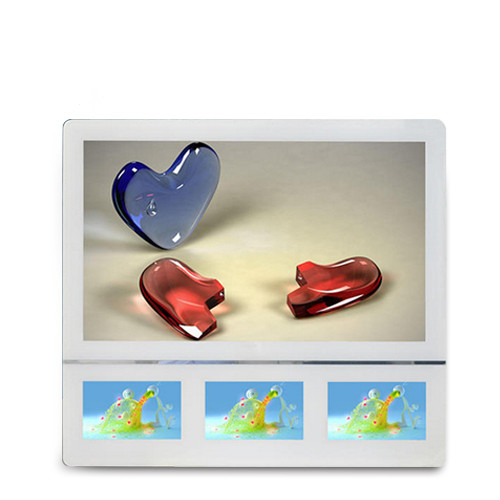

Split Screen Demo: Intelligent one button split screen for simultaneous playback of multiple programs
Equipped with split screen software and built in multiple basic split screen templates. Video, Picture and text are played simultaneously.
U Disk Playback: Simple and fast, plug and play
Steps: Copy the content you want to play to the U disk first, insert the USD flash drive into the USB port of the machine and wait for copying the contents of the USB flash drive to the built in storage, unplug the U disk machine to automatically play content.
Remote Release: online advertising machine manages, release anytime & anywhere.
The online version can remotely control / publish / manage advertising machines through a computer, and the factory provides a self-developed coral island distribution system.
Basic Configuration:
| Panel(Major Sizes) Specifications | |||
| Items | 43inch | 49inch | 55inch |
| Panel Type | TFT-LCD | TFT-LCD | TFT-LCD |
| Active Display Area | 930mm×523mm | 1076.50(H)X607.50(V) | 1209.6 (H) x 680.4 (V) |
| Display Colors | Full Color 16.7M | Full Color 16.7M | Full Color 16.7M |
| Number of Pixels | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 |
| Luminance of White | 400 (Typ.) | 400 (Typ.) | 400 (Typ.) |
| Contrast | 3000:1 (Typ.) | 3000:1 (Typ.) | 3000:1 (Typ.) |
| Viewing Angle | 178°(H)/178°(V) | 178°(H)/178°(V) | 178°(H)/178°(V) |
| Aspect Ratio | 16:9 | 16:9 | 16:9 |
| Response Time | 5 (Typ.) | 5 (Typ.) | 5 (Typ.) |
| Life Time | 60,000 | 60,000 | 60,000 |
| Digital Signage Function | |||
| Automatically play once power on | |||
| Timer on/off | |||
| Loop playback/ Slide show | |||
| Background music modes, image modes, video modes | |||
| News ticker | |||
| Android System | |||
| OS support | Android | ||
| OSD | English and multi-language | ||
| CPU | RK3288 | ||
| DDR | 2G / 4G | ||
| Storage | 8G / 16G | ||
| power | AC 100 ~ 240 V, 50/60 Hz | ||
| Port | 2xUSB2.0,1xHDMI,1x3.5mm Stereo audio-in jack, 1*RJ45 | ||
| Optional Peripherals | |||
| Touch | Capacitive touch 10 points | ||
| Scanner | QR code scanner | ||
| Printer | 80mm | ||
| Others | |||
| Loud speaker | 10W x 2 | ||
| Power Input | AC 100 ~ 240V, 50/60 Hz | ||
| Max. Power Consumption | 95W | ||
| Standby Power Consumption | ≤1W | ||
| Working Temperature | 0 ~ 50° | ||
| Storage Temperature | -20 ~60° | ||
| Working Humidity | 10% ~ 90% | ||
| Storage Humidity | 10% ~ 90% | ||
| Unit Package | PE film + Foam corner protector + Carton | ||
| Export Package | Export wooden packing | ||
| Accessories | remote control, Power cord, key | ||
| Warranty | 1 Year | ||
Optional Peripherals:
10.1’’ – 100’’ PCAP, IR or SAW Touch Screen
60mm or 80mm Thermal Printer
Swipe/ Motorized/ Dip/ RFID/ Flash Card Reader
1D / 2D Barcode Scanner, Passport/ Fingerprint/ Driving License Scanner
Webcam/Security Camera; Handset; Bluetooth
GPRS/ Wireless; Proximity Sensor; Power Supply;
OS & Software:
Window XP / WIN 7 / Win10 / Android available, all hardware drivers available.
Dimensions:
Height: 680mm (Subject to Change)
Width: 510mm (Subject to Change)
Depth: 220mm (Subject to Change)
Packing:
Bubble-wrap, Carton, Wood (Plywood) Crate
Applications
Digital Signage, Digital Displays, Advertising Kiosks, Indoor / Outdoor Digital Signage Displays, Capacitive / Infrared / PCAP / IR Touch Digital Signage, Digital Posters, LCD / Wall Mount / Double-sided / Hanging Advertising Players (With Card Reader), Slim / Super Slim / Sleek/ Floor Standing / Double-sided Digital Kiosks, IP55 / IP65 Digital Signage Kiosks, Automotive Kiosks, Corporate Kiosks, Display Kiosks, Digital Signage Player, Advertising LCD Display, China Kiosks Manufacturers
