Overview

Waterproof TV – Simple Design Splendid Within, Smart Core

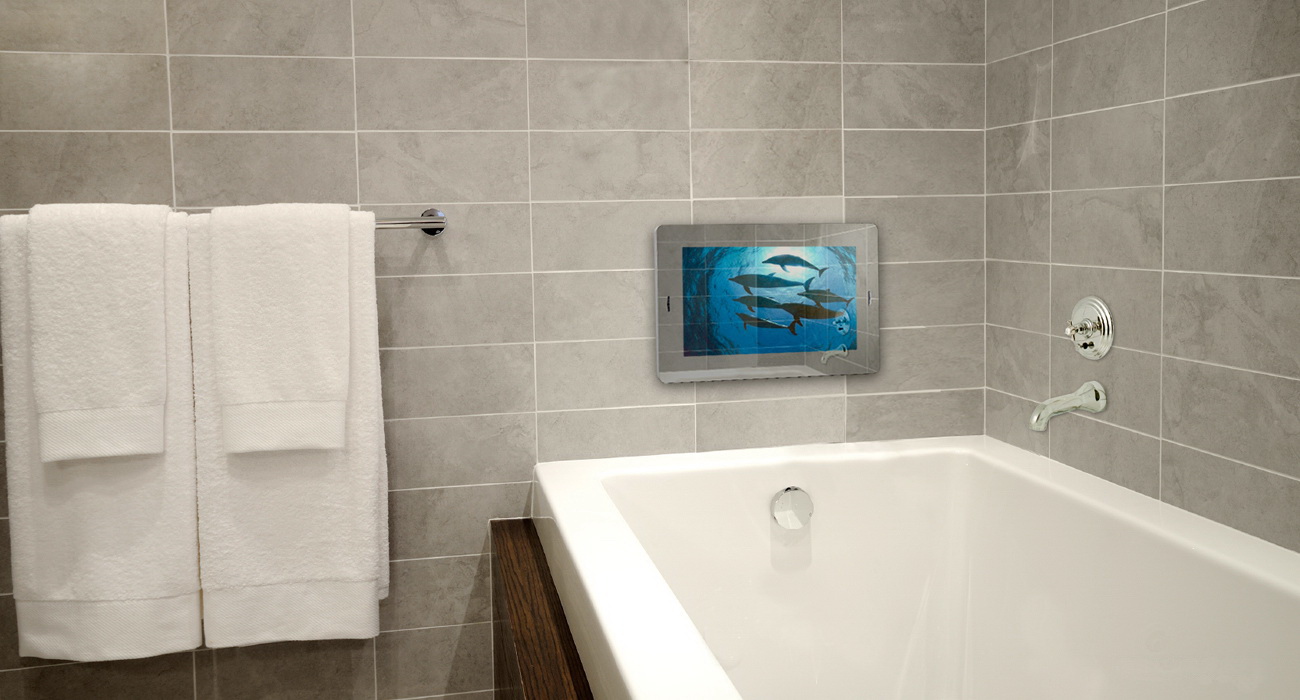

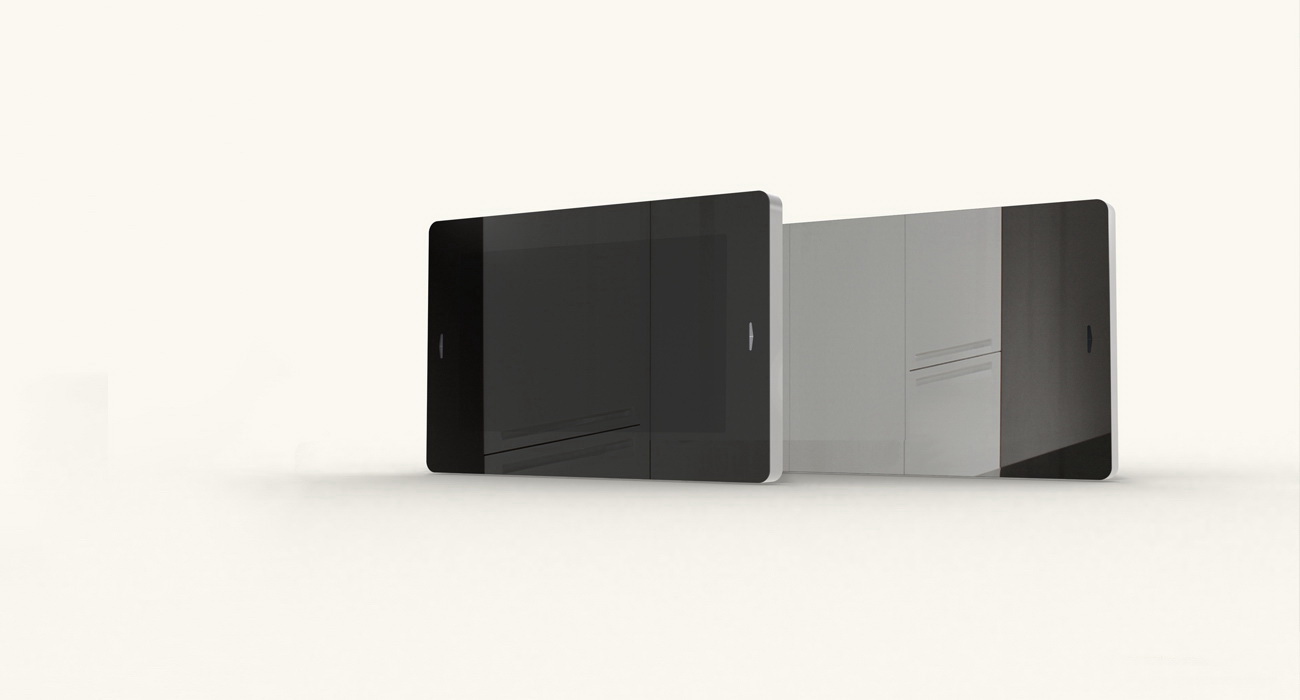

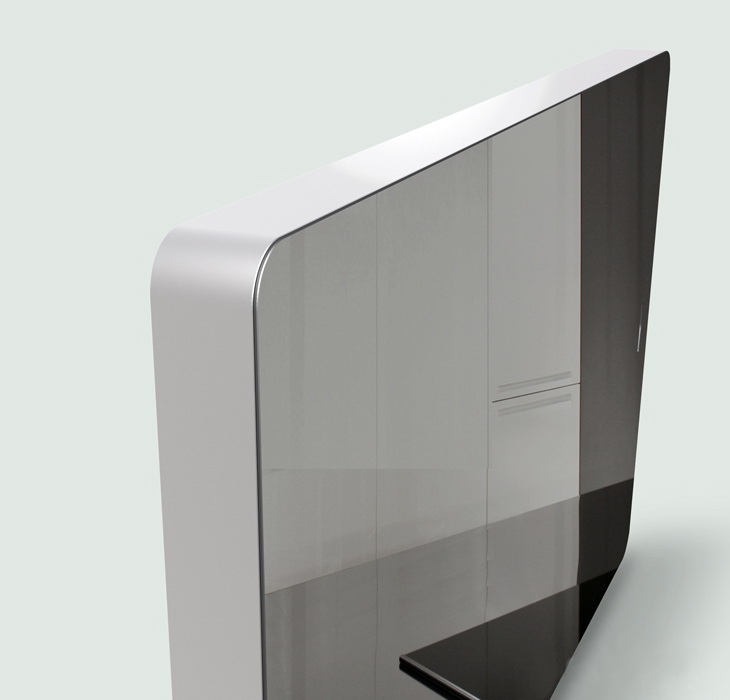

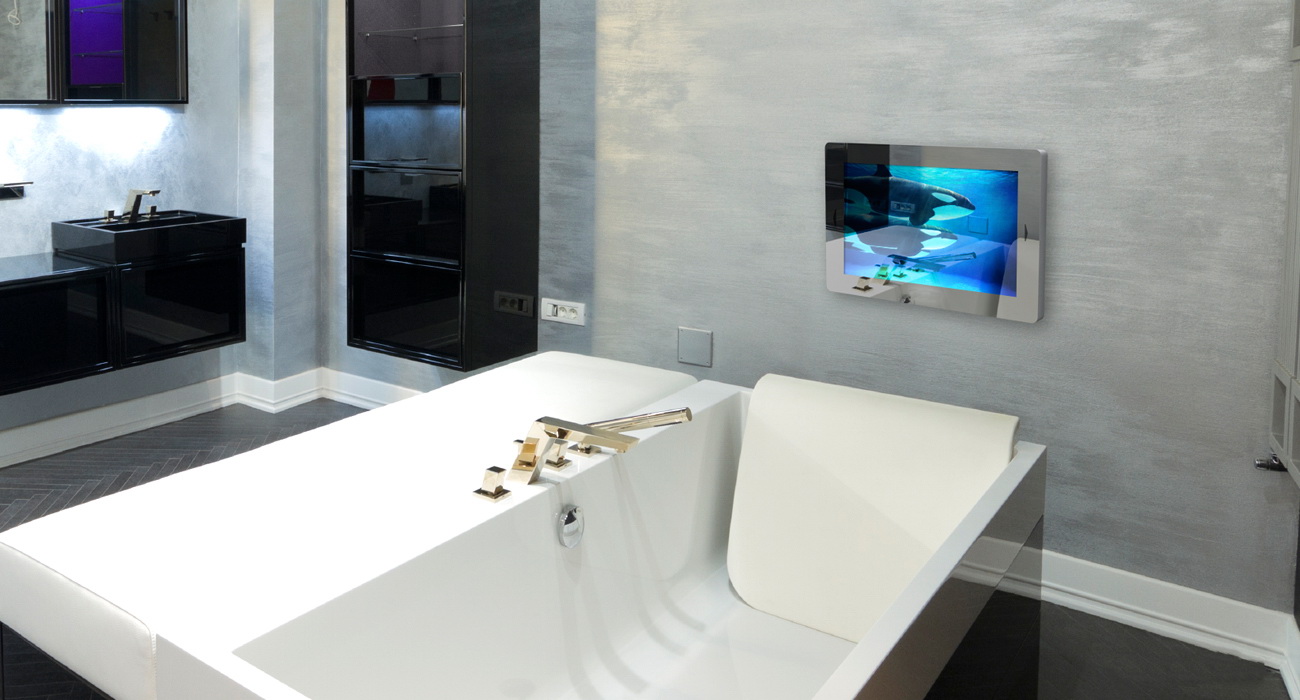

New BD Series (Black Diamond) Waterproof TV was a revolution of design: An ultimate waterproof TV with display, motherboard, graphic processor, smart chip and more---inside one simple, stylish enclosure. Countless waterproof innovations later, we've raised the bar yet again. BD Series now has better MPS display technology with TDD Mirror panel to reduce reflection rate to maximum. New waterproof structure cut to 1.4" on the edge to reduce installation space up to 30% and more. To make this happen takes all the hard work and imagination, and now with new technology, more possibility is open for discussion in a smaller space.

Main sized with 19’’, 22’’ & 27’’, BD Series Waterproof TV’s smart chipboard gives her even more functions, of which TV is only part of the basics. Online program and IPTV now gives you new choices. With strong Dual Cortex A9 chip inside, now you can play with all APPs online instead of just watching movie or TV program. You can also connect it to your security system for video intercom.

Specifications

TDD-CD-WT Series – Wall Mount & Built-in

Features:

With silver mirror, black GEM mirror and ceramic white

Waterproof TV: New black diamond series

Cooling System: Mirror display system, diamond level optical mirror, stainless steel and magaluma body

100% aluminium - magnesium TV body with unique heat dispersion system

WXGA LCD TFT Panel (SAMSUNG / LG)

Digital/ Analogue Tuner with H.264/MPEG4 full HD decoder

IP66 waterproof TV body, both indoor and outdoor use

Several installation solutions

Internal/ external (optional) speakers

HDMI /VGA connector, USB, RS232 (optional)

IP68 4-in-1 smart waterproof remote control (optional)

Key Features:

Screen Size            22’’

Display Area           477*268mm

Brightness             350cd/m2

Viewing Angle       165(H) / 165(V)

Resolution           1680*1050

Response Time       5ms

System:

Video System       PAL, NTSC, SECAM, DVB, ISDB, DMB-T/H, ATSC (optional)

Audio System       BG, DK, I, L/L’, Mpeg-2, AC-3(optional)

Nicam/a2           Yes

Input:

DTV               DVB, ATSC, ISDT, DMB-T/H (optional)

ATV                   PAL, NTSC, SECAM (optional)

AV                   AV input

S-VIDEO              S-video input

PC                   DB 15 VGA Input

HDMI               480i, 480p, 576i, 576p, 720p, 1080i, 1080p

USB               Photos, Music, Movie, Text

Temperature:

Working Temperature   -10~65℃   Standby Temperature   -10~75℃

Humidity:

Working Humidity       15~100%   Standby Humidity       15~100%

Others:

Amplify               3Wx2

OSD Language        English, French, German, Italian, Spanish, Portuguese, Chinese (optional)

Power Supply       DC12V

Consumption           ≤34W, standby<0.5W

Interfaces & Functions:

Power: Power Input, USB2.0: USB Input, HDMI: High Definition Multimedia Input, Earphone: Earphone plug-in, VGA: Analog RGB signal input from PC

S-Video: Video signal input from external device, Audio in-Right: Audio input-Right, Audio in-Left: Audio input-Left

CVBS: CVBS Video signal input, PC Audio in: Audio input from PC, RF: ATV/DTV input, Audio output-Right, Audio output-Left, Rear Infrared input, RS232 for PC control

Accessories:

Waterproof Remote Control 4-in-1 Smart Remote Control (optional), External Waterproof Speaker (optional), External Infrared Cable Control (optional)

OS & Software:

Android available, all hardware drivers available.

Packing:

Bubble-wrap, Carton, Wood (Plywood) Crate (optional)

Carton Package Dimension: 680*520*175mm, Net Weight: 7.3kg, Gross Weight: 11.7kg
