Overview

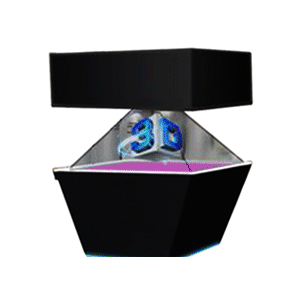

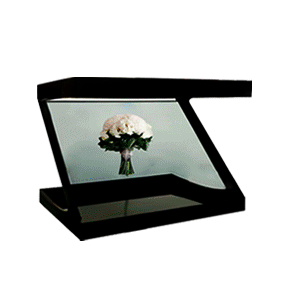

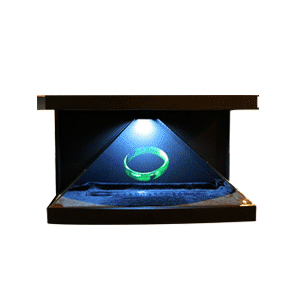

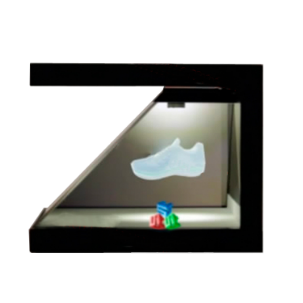

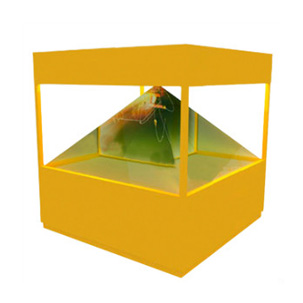

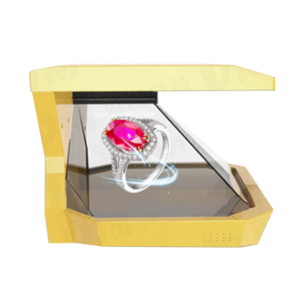

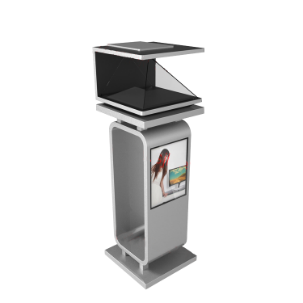

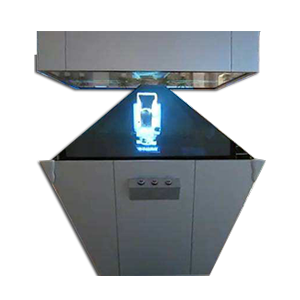

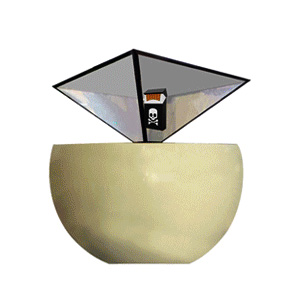

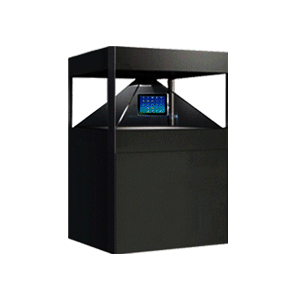

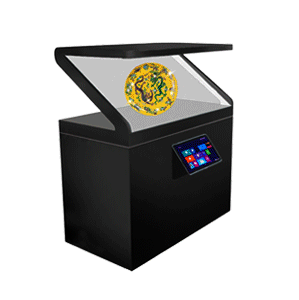

3D Holographic Display - ELEVATE YOUR BRAND WITH 3D HOLOGRAMS
A holographic display is a type of display that utilizes light diffraction to create a virtual three-dimensional image of an object. Holographic displays are distinguished from other forms of 3D imaging in that they do not require the aid of any special glasses or external equipment for a viewer to see the image. TDD-CD-3D series 3D holographic displays offer a new and unique way of creating marketing activations, as you can promote your products in a completely unique way with seemingly “free-floating” 3D holograms that explain details, features, and unique selling points.

Whether you are looking to elevate your in-store marketing in retail, stand out at a crowded expo, or create a unique brand activation, our range of award-winning 3D holographic displays are built to generate attention that resonates with today’s consumer, who increasingly lives beyond the reach of classic advertising. Whether you are looking to amplify up your in-store marketing in retail, promote your company and products at an expo, or deliver memorable brand activation, our portfolio of holographic displays range in different sizes and designs that’ll fit your specific project.

Specifications

Features:
Interactive possibilities (optional)
Light Control
High-end glass optics
Built-in audio
Create visual experiences where the animations ‘flow’ seamlessly across all the displays
Key-protected front access door (optional)

Functions:
Support audio formats, 1080P full HD loop play, and advertising timing loop playing
Supports timing automatic power-play, automatic shutdown
Supports Android System
Support a variety of android devices remote control, edit content synchronization. Update, expand business opportunities

Configuration:

Category	Parameter	13", 19’’, 22’’, 27’’, 43’’, 49’’, 58’’, 70’’, 84’’
	Imaging plane	180°, 270°, 360°
	Panel size	13’’- 84’’ inch
	Display Area	Up to final size
	Display Mode	16:9
	LCD Type	TFT-LCD
	Max Resolution	1280*800, 1366*768, 1920*1080, 3840*2160
	Display color	16.7M
	Brightness(nits)	350 cd/m²
	Contrast	500:1, 800:1, 1000:1, 2000:1
	View-angle(up/down/left/right)	89°/89°/89°/89°
	Response Time	5-8ms
	Field Frequency	60Hz
	Color system	PAL/NTSC/Automatic Identification
	OSD Language	Chinese/English
Multimedia System	AOLSEE	Information release system
	System	Android4.2.2
	Firmware upgrade method	TF card/Online
	Royal TS	B / S Architecture
	Support content format	Wmv, avi, flv, rm, rmvb, mpeg, ts, mp4
	Frequency	MP3,WMA
	Picture	BMP, JPEG, PNG, GIF
Motherboard Standard Configuration	CPU	Log A20 dual-core clock speed: 1.2GHz
	RAM	DDR3  1G
	On-board storage	8G
Onboard Interface	HDMI	Maximum 1080p HD output
	AV	Support audio and video input
	Network port	RJ45, 10M / 100M adaptive Ethernet
	TF Deck	Extensible 32G
	USB	USB2.0
Power	Audio system	Built-in 8 Ω 10 w * 2 speakers
	Power	AC100V～240V, 50/60Hz
	The maximum power loss	≦100W
	Standby power loss	＜1W
Environment	Operating temperature	0℃~50℃
	Storage temperature	-20℃~60℃
Figure	Frame material	Hardware shell + holographic glass
	Fuselage size (long x high x thick)	Subject to change
	Installation	Floor standing, countertop
	Range of application	Indoor
Accessories	Power cord	1
	Approval Certificate	1
	Manual	1
	Warranty card	1


OS & Software:
Android, all hardware drivers available.

Dimensions:
Height: 679mm (Subject to Change)
Width: 1153mm (Subject to Change)
Depth: 628mm (Subject to Change)

Packing:
Bubble-wrap, Carton, Wood (Plywood) Crate
